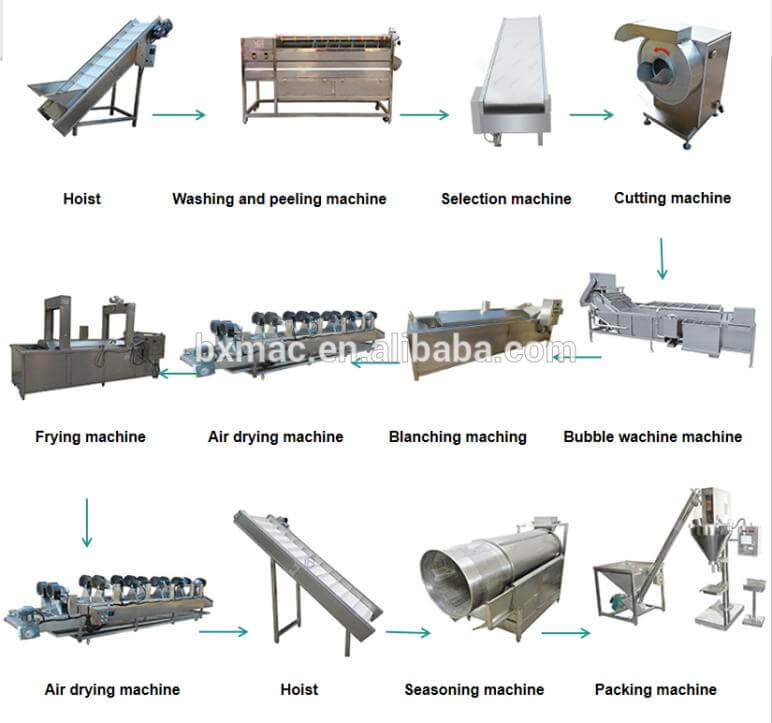

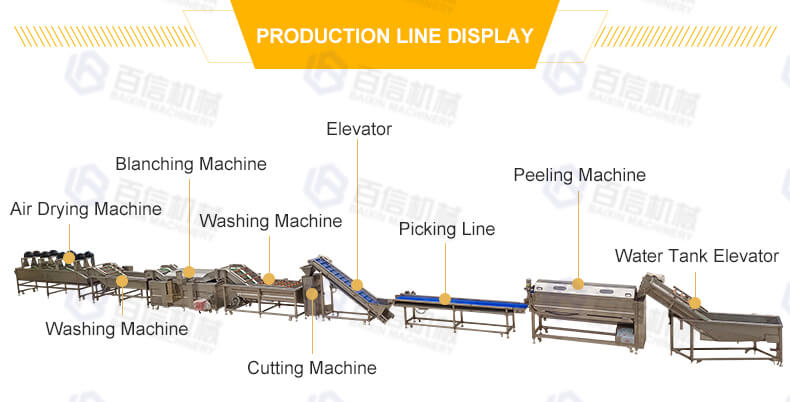

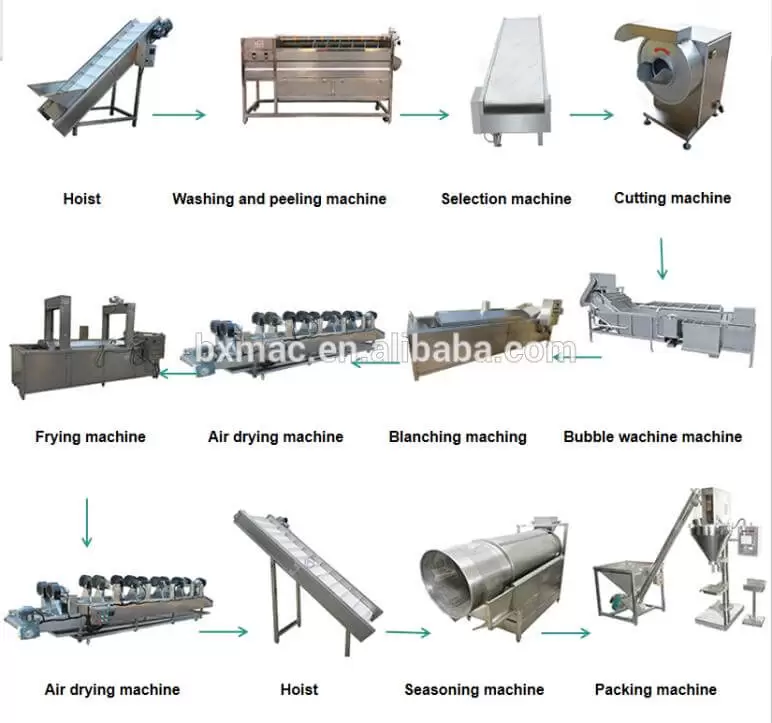

Working principle of potato chips production line

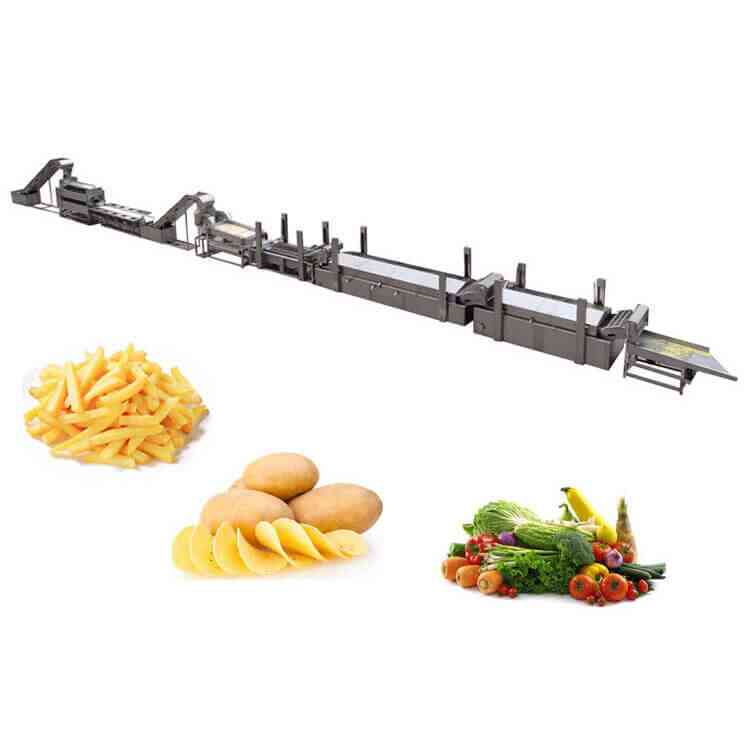

This fully automatic potato chips production line is specially designed for processing raw potatoes into delicious potato chips, potato crisps, or French fries, you could also make Frozen French fries (equipped with a freezer). It has some advantages such as, large capacity, large output, high degree of automatic, labor-saving, and high return rate.
Components of potato chips production line
Advantages of potato chips production line

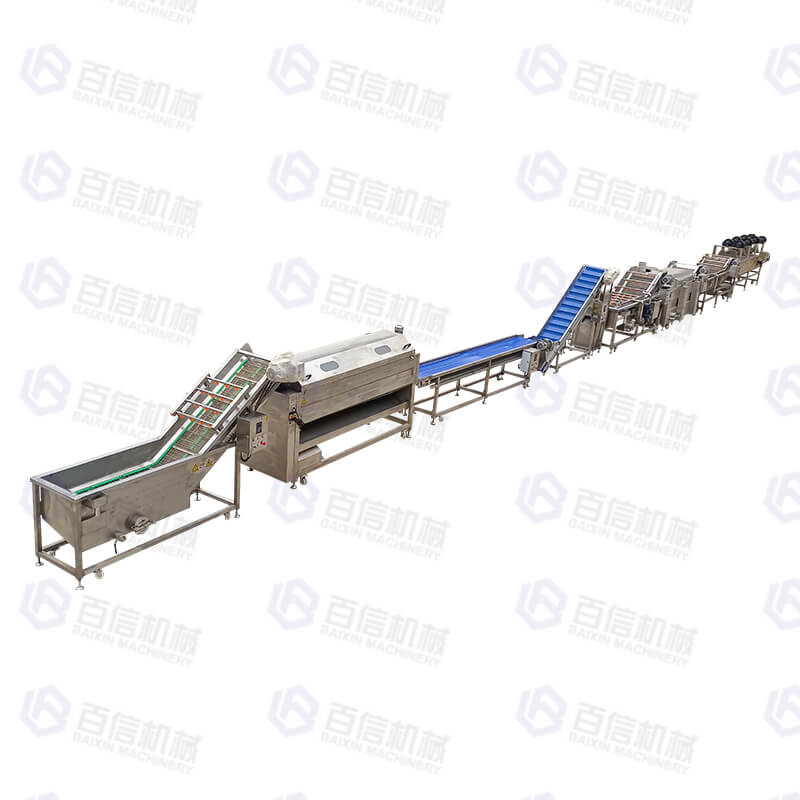

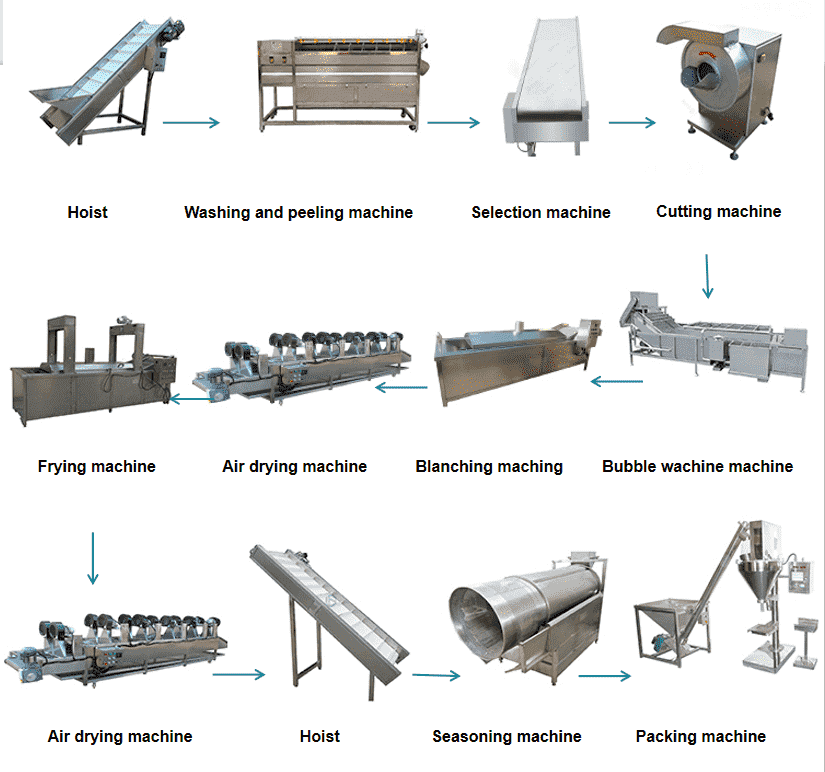

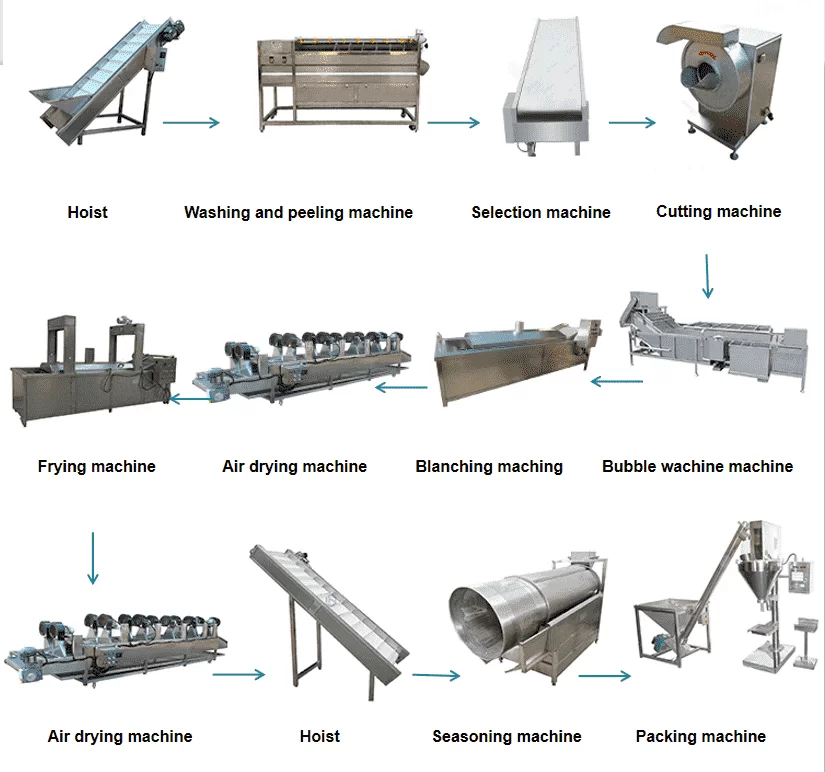

Potato chips complete sets of equipment are cleaning and peeling machine, slicing machine, blanching machine, dehydrator, fryer, deoiling machine, freezer, packaging machine, etc. The equipment has the characteristics of less investment, quick effect, good quality, and high benefit.
|
No. |
Product name | Power(Kw/Hz) |
Dimensions |
|
1 |
Hoist | 0.55kw/380v/50Hz | 1500*800*1600mm |

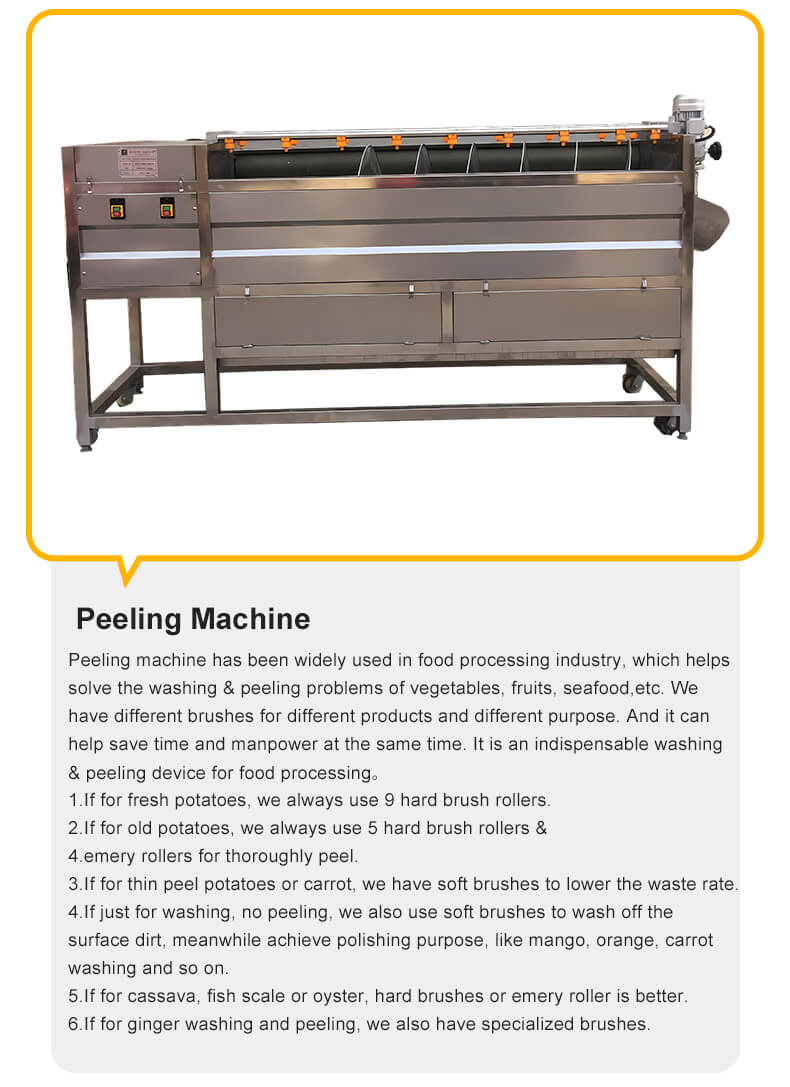

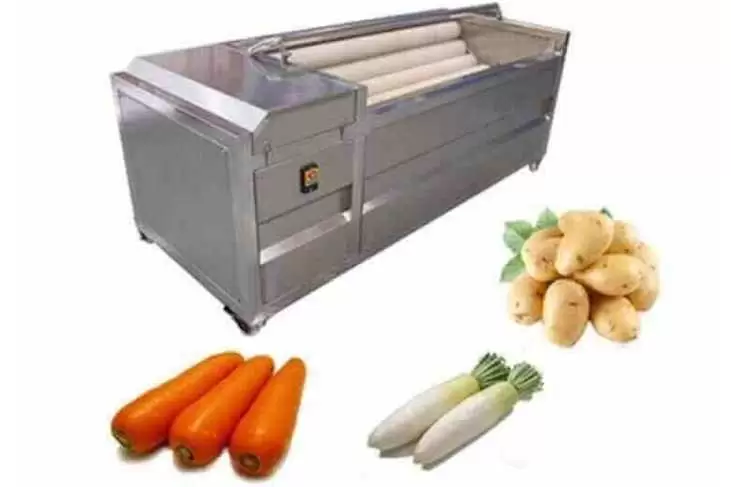

| 2 | Cleaning and peeling machine | 4.75kw/380v/50Hz |
1800*900*1500mm |
|
3 |
Selecting machine | 0.75kw/380v/50Hz | 3000*900*900mm |
|
4 |

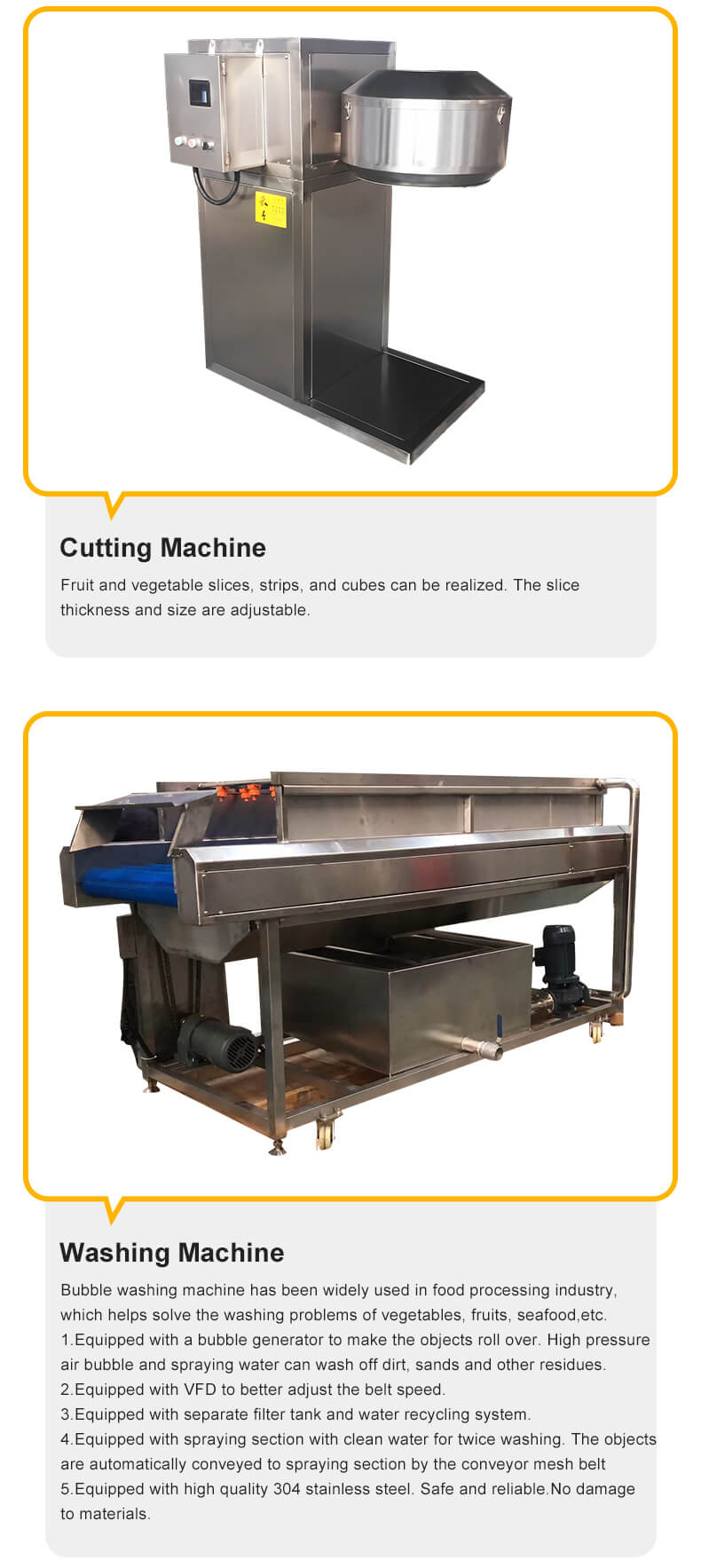

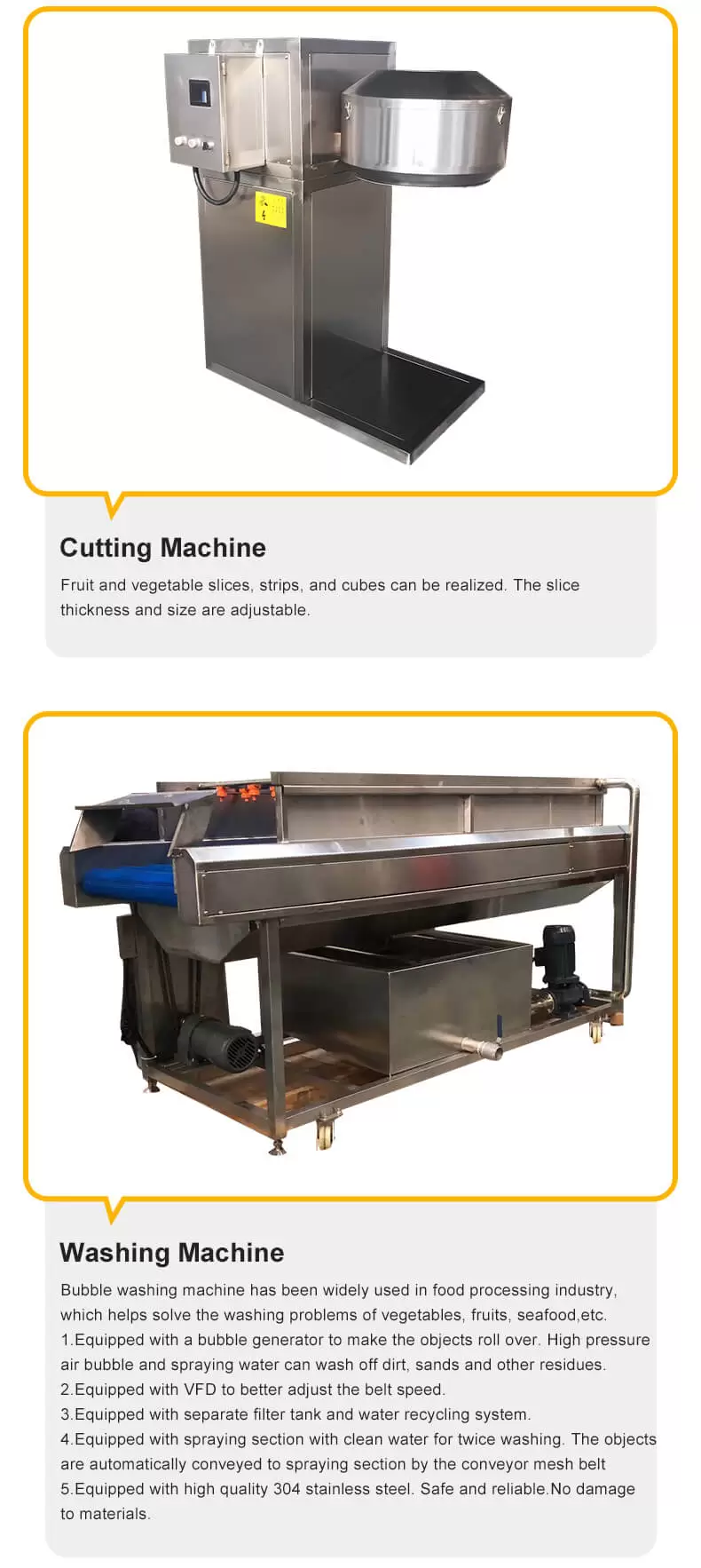

Cutting machine | 1.5kw/380v/50Hz |
950*800*950mm |
| 5 | Bubble washing machine | 5kw/380v/50Hz |
3000*1600*900mm |
|
6 |

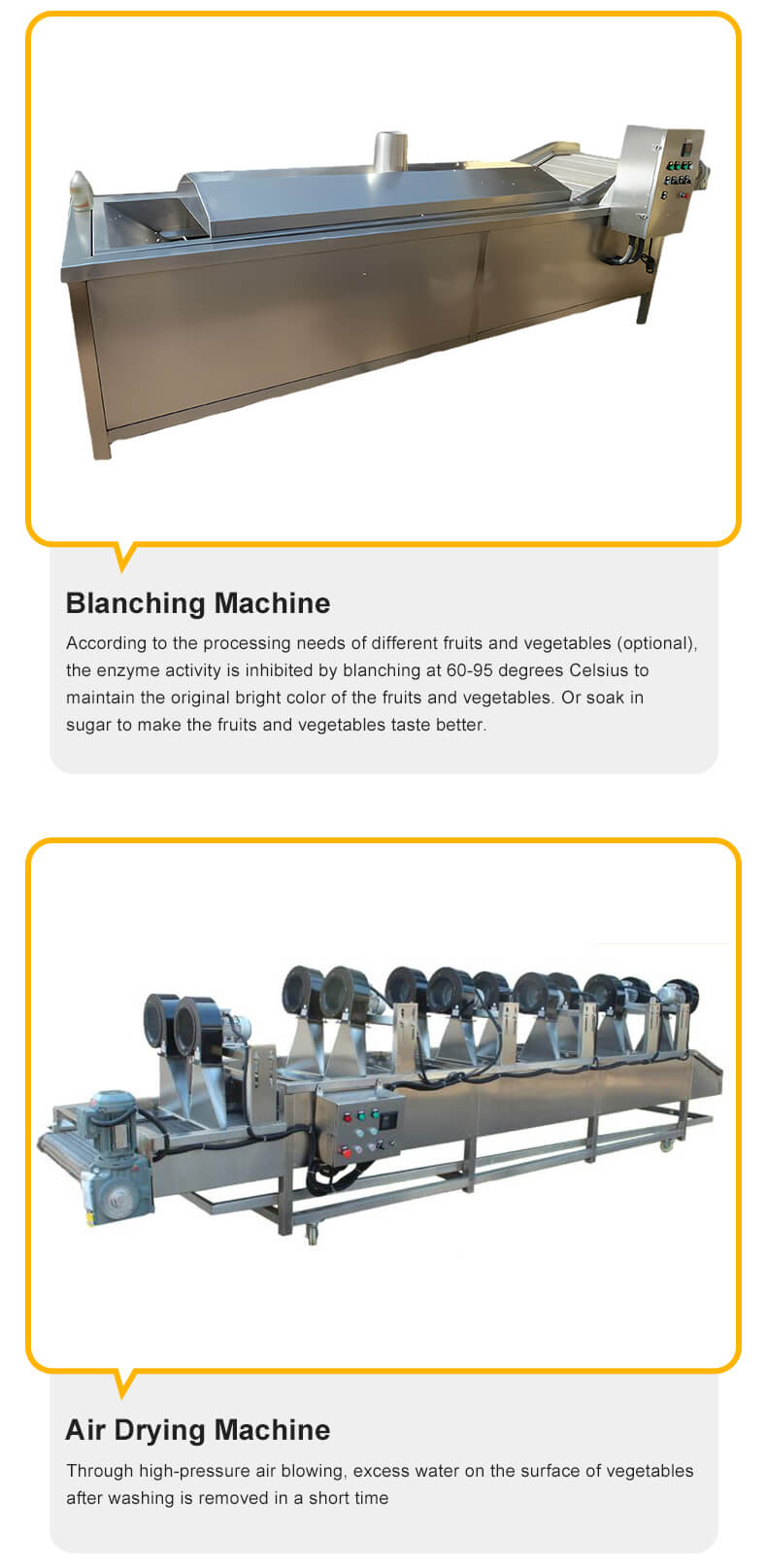

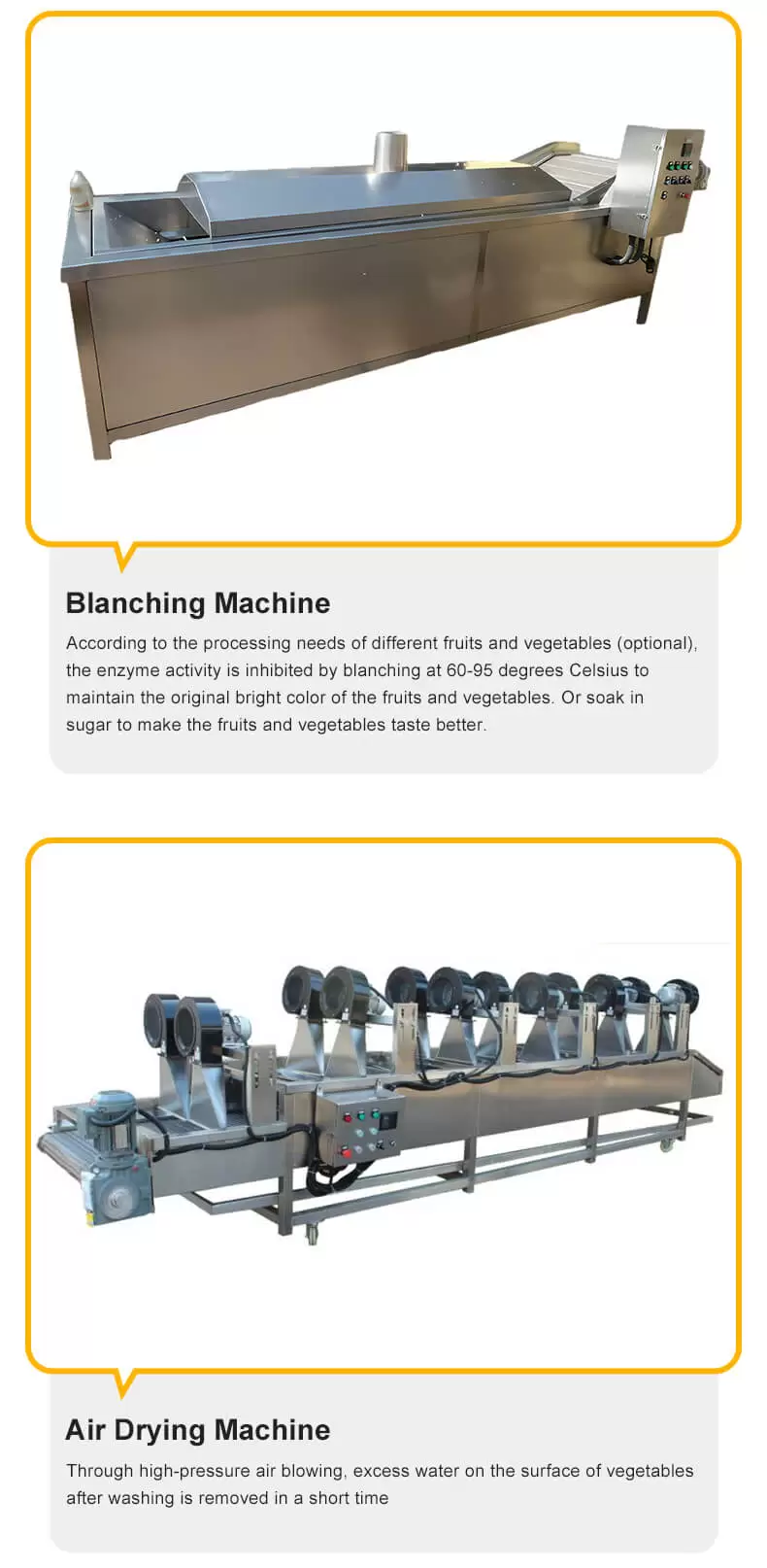

Blanching machine | 70kw/380v/50Hz | 3000*1600*950mm |
| 7 | Air drying machine | 1.5kw/380v/50Hz |
1500*1000*1300mm |
|
8 |
Frying machine | 80kw/380v/50Hz | 3500*1200*2600mm |
| 9 | Air drying machine | 1.5kw/380v/50Hz |
1500*1000*1300mm |
|
10 |
Hoist | 0.55kw/380v/50Hz | 1500*800*1600mm |
| 11 | Seasoning machine | 1.5kw/380v/50hz |
2000*700*1600mm |
|
12 |
Packing machine | 6kw/380v/50Hz |
2000*3000*260mm |
