How to dry noodle
1: Put the noodle on the tray
Spread the noodle evenly on the tray with a thickness of about 5 cm, and then put them in the drying oven.
2: noodle drying
Set the temperature in the drying room to 65°C and the humidity to 10%. Dry for 6~8 hours to complete the noodle drying.
3: storage
The dried noodle will regain moisture when they are in direct contact with the air, so a sealed package is required. If you use vacuum packaging, you can better preserve the color and aroma of noodle.

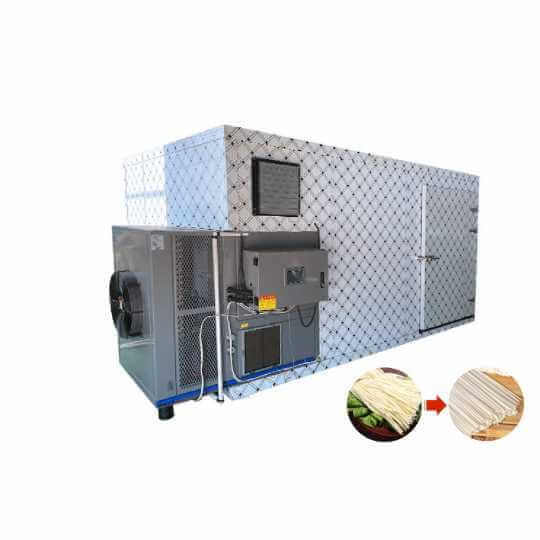

Working principle of noodle drying machine
The noodle heat pump dryer adopts the principle of reverse Carnot cycle. It absorbs low-temperature heat energy in the air, and becomes high-temperature heat energy after efficient heat collection and integration of the heat pump system, which is transported to the drying room to circulate heating and drying the noodle, and the hot and humid air in the drying room is directly discharged to the outside of the drying room through the dehumidifier.
The noodle heat pump dryer can quickly remove the water in the noodle without affecting the original color, shape and nutrient content of the noodle. The noodle drying oven is equipped with a computer control system, which can realize automatic temperature control. The drying temperature range of the heat pump dryer is 20-80°C, and the materials suitable for drying are very wide, such as grains, edible fungi, medicines, seafood, bacon, fruits and vegetables, tobacco leaves, seeds, spices, etc.
Components of noodle drying machine
One set noodle drying machine contains:
1:Heat pump drying host
2:Drying chamber
3:Fan frame with fan
4:Trolley with tray
The drying chamber is used 100mm polyurethane insulation board, supporting 304 stainless steel trolleys and trays.
Advantages of noodle drying machine
1:High quality: noodle can be maintained full of shape, bright, color.
2:Fast dehydration: 4-6 hours per batch according to different materials.
3:Wide application: a variety of materials can be dried like vegetables, fruits, herbs, meat, seafood and etc.
4:Efficient and environmentally friendly, absorb heat from the air to dry the materials, without any pollution emissions and save about 70% of operating costs compared with traditional drying technology.
5:Simple operation, easy installation or no installation.
| Drying oven list | ||||||||||
| type | machine size(MM) | Capacity (KG) | power | Qty of fan | fan power | total power（kw） | Qty of cart | Qty of tray | cart size(MM) | tray size(MM) |
| 3P A | 3500×2200×2200 | 200-400 | 2.25 | 6 | 0.25/pc | 3.75 | 6 | 78 | 670×810 | 600×800 |
| 8P A | 5300×2200×2800 | 450-750 | 6 | 12 | 0.37/pc | 10.44 | 6 | 156 | 1210×870 | 600×800 |
| 15P | 7500×3000×2800 | 900-1500 | 11.25 | 12 | 0.55/pc | 17.85 | 12 | 312 | 1210×870 | 600×800 |
| 1P D | 1180×680×1800 | 50-80 | 1 | — | — | 1 | — | 15 | — | 600×800 |
| 3P D | 2100×930×2100 | 120-300 | 3.5 | — | — | 3.5 | — | 40/60 | — | 600×800 |
| 8P D | 4000×1960×2050 | 650-1000 | 8 | — | — | 8 | 8 | 232 | 600×800 | 600×800 |
| The drying machine can be equipped according to the user’s requirements and the production demands. | ||||||||||
The heat pump can be used in many application,like
agriculture,industry,seafood,grain,herbs,construction,paper products,seasoning,mineral industry,etc.
1:Dry vegetables: like radish, lettuce, pumpkin, carrots, spinach, cassava,etc.
2:Dry fruits:like apple, lemon, mango slices, peach,apricot,etc.
3:Dry meat: like sausage, beef, duck, ham,etc.
4:Dry seafood:fish, shrimp, seaweed,etc.
5:Others it can dry noodle, wooden ,stick incense,herbs , etc.
Your product is not listed above? We are ready to meet any new challenge! Contact us for free product testing!
