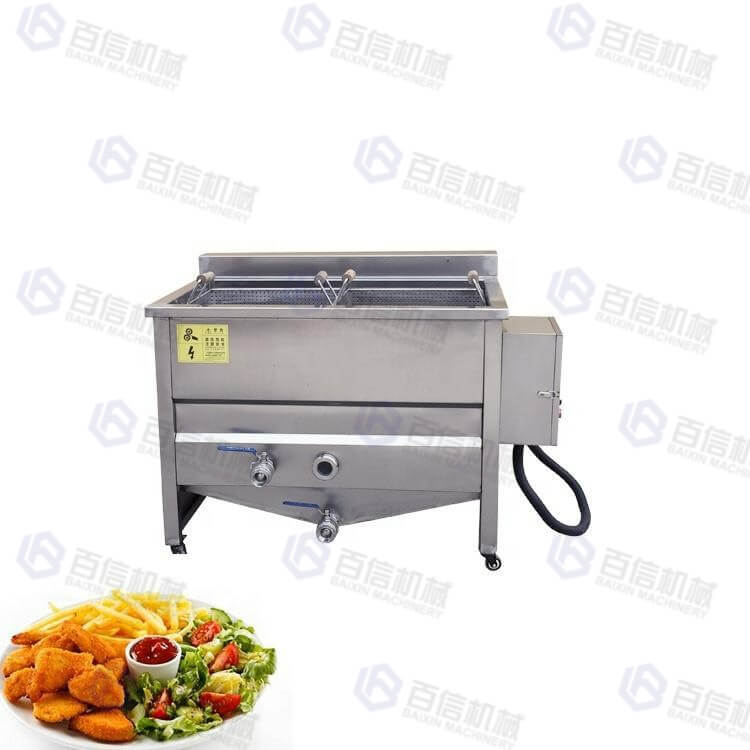

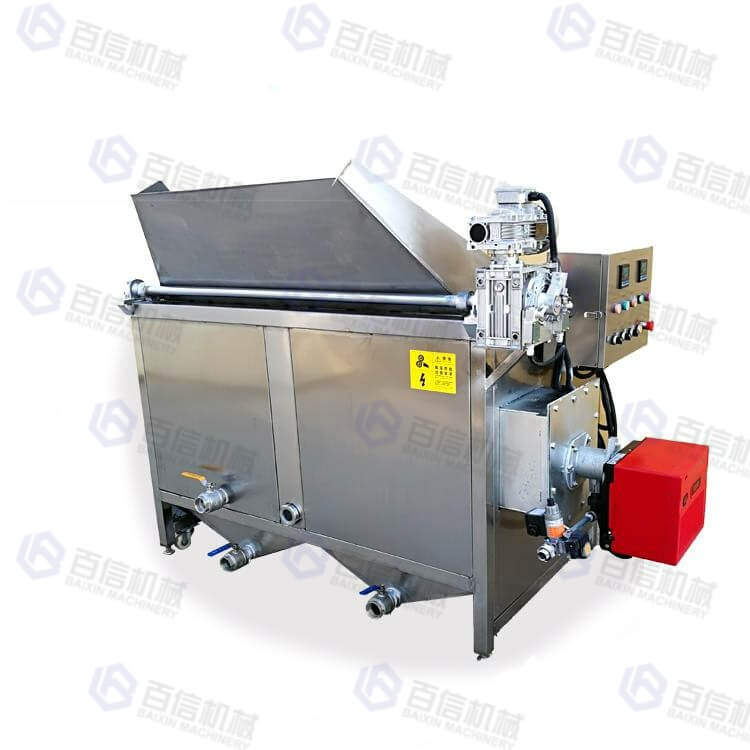

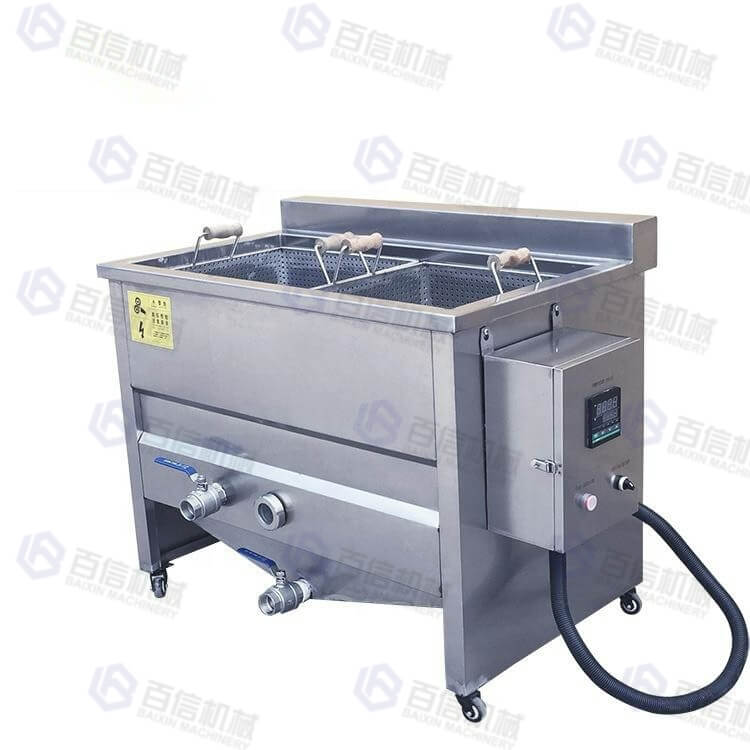

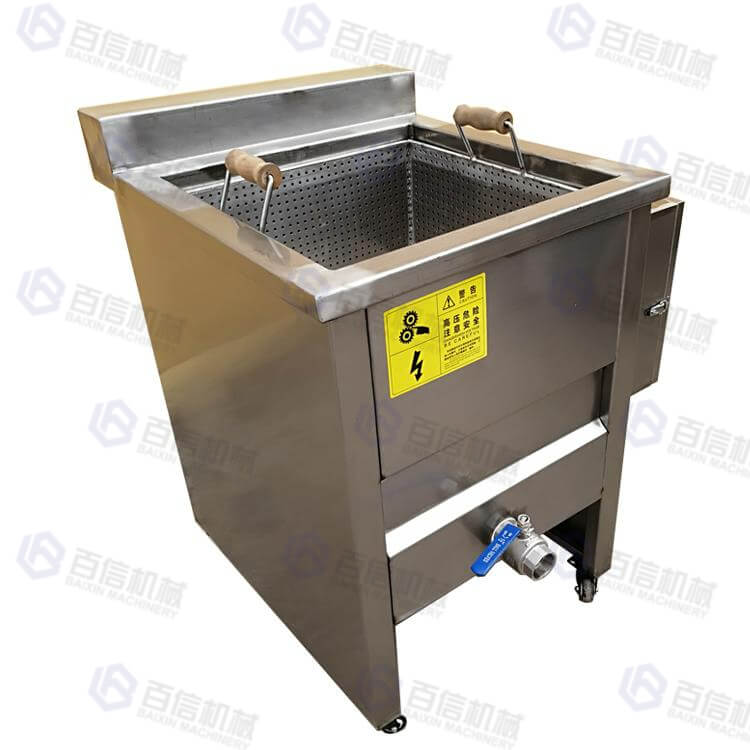

The main parts of this small scale manual batch fryer machinee are made of SUS304 stainless steel. The heating mode is high-temperature heating tube or burner. Equipped with automatic feeding system, mixing system, emission system and combustion system. Suitable for many kinds of products, like meat pie, chicken nuggets, potato chips, spring rolls, peanuts, chin chin and other snacks.
| Name | Batch Fryer Machine |
| Heating method | Electric or Gas |
| Material | SUS304 |
| Frying frame area | 500/1000/1500/2000*500mm |
| 1000/1500/2000*800mm | |
| Oil capacity | 50L/100L/150L/200L/300L/400L/500L/800L |
| Capacity | 5-30kg/batch |
| Discharging material | Automatic or Manual |
| Feeding material | Automatic or Manual |
| Note | 1.The basket is stainless steel holes; 2.The working temperature and frying time are adjustable; 3.With automatic and manual working type; 4.Oil water separation frying system. |

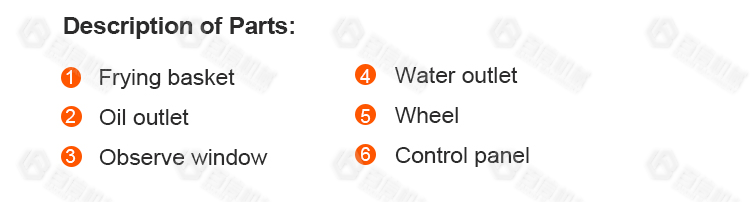

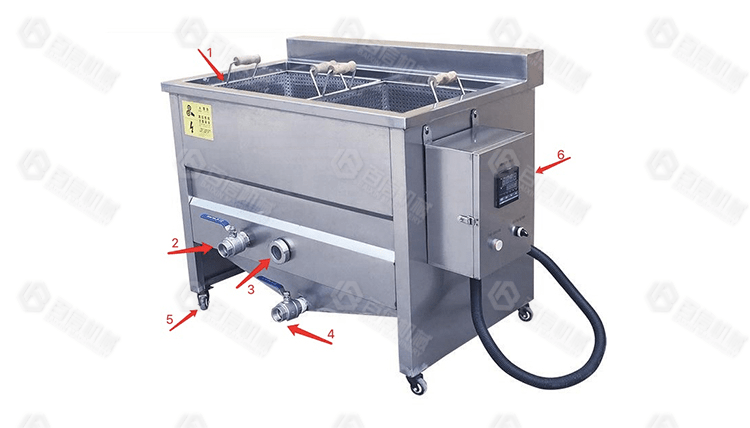

Components of manual batch fryer machine

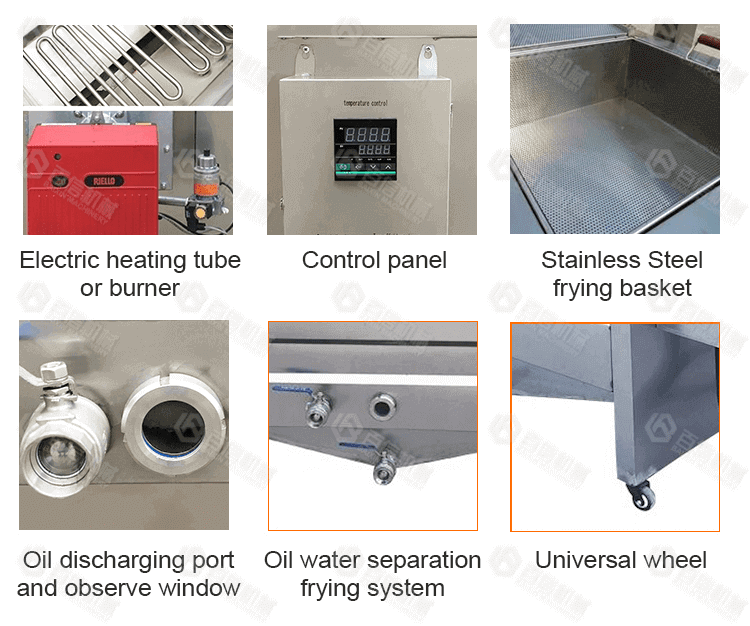

Features of manual batch fryer machine
| 1 | Gas or electricity as heating source | |||
| 2 | Oil-water separation and filtration system or pure oil filtration system | |||
| 3 | Automatic discharging and optional automatic feeding through motor-driven manner to reduce labor intensity | |||
| 4 | Automatic temperature control: 0-300°C to be set at your will | |||
| 5 | optional timer and alarm to remind you when the frying is finished | |||
| 6 | optional slag scrapping device if the fried products produce much slag and residue | |||
| Weight(kg) | Oil Capacity | Machine Dimension(mm) | Power | Capacity(kg/batch) |
| 70 | 50L | 700*700*950 | 12KW | 5 |
| 100 | 100L | 1200*700*950 | 24KW | 10 |
| 150 | 150L | 1700*800*950 | 36KW | 15 |
| 240 | 200L | 2200*800*950 | 48KW | 20 |
| 500 | 120L | 1000*800*1100 | 100000kcals | 10 |
| 600 | 200L | 1500*1000*1100 | 100000kcals | 20 |
| 700 | 300L | 2100*1000*1100 | 100000kcals | 25 |
| 800 | 400L | 2600*1000*1100 | 100000kcals | 30 |

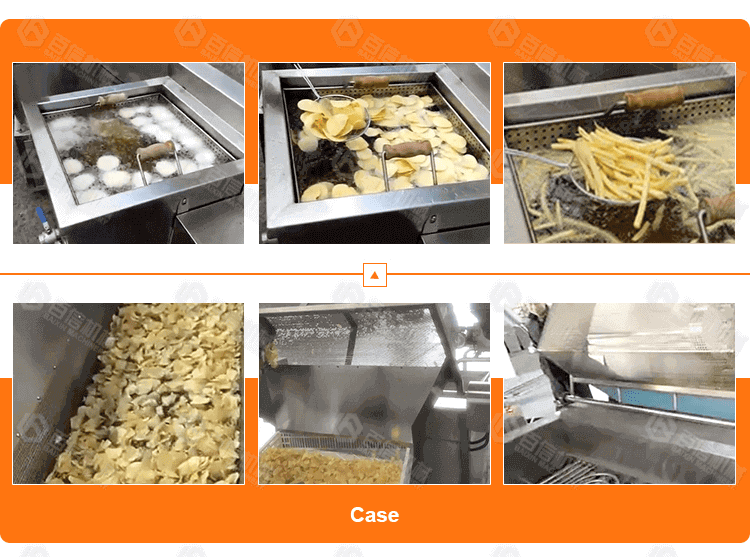

This manual batch fryer machine is suitable for various kinds of fried food like meat pie, chicken nuggets, potato chips, banana chips, spring rolls, peanuts and many other snacks.It is widely used in food industry.
This batch frying machine always works together with other machines like deoiling machine to combine one frying production line.
