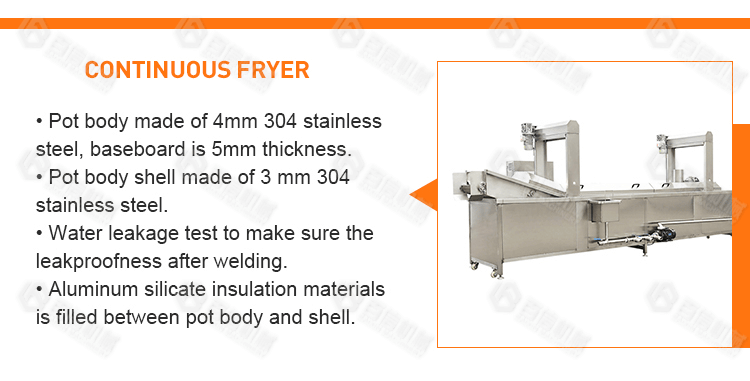

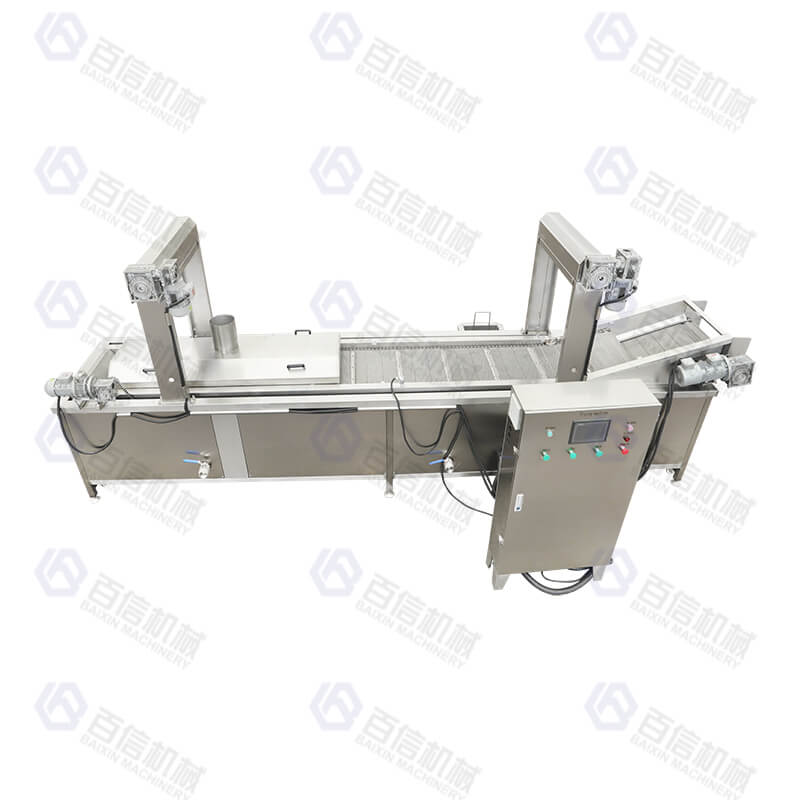

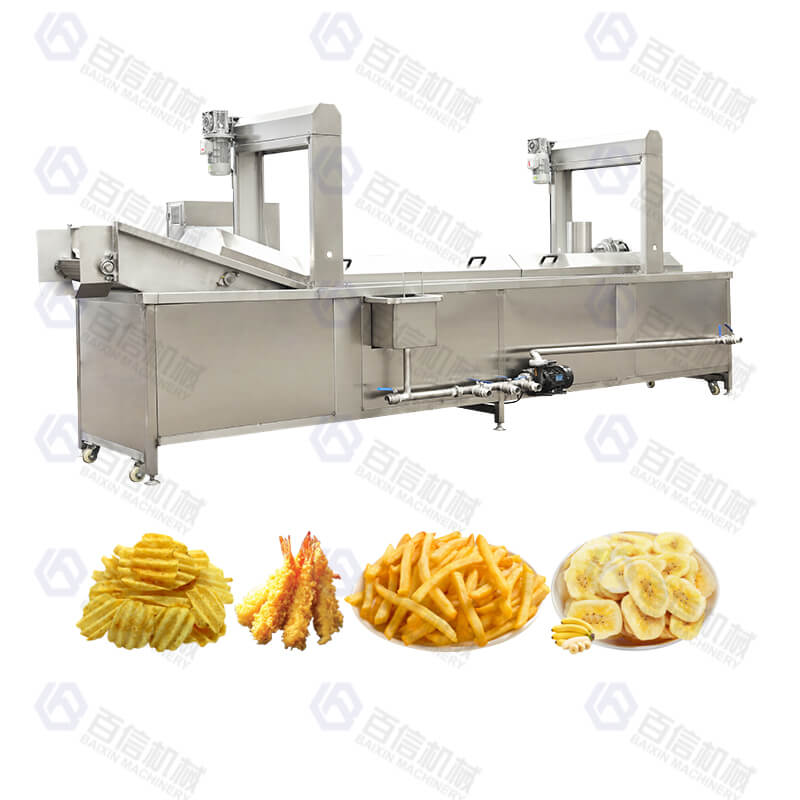

Introduction of continuous frying machine:
This automatic continuous fryer machine is widely used in restaurant and all food industrial, also an indispensable machine in kinds of snack processing line. It consists of automatic belt conveying system, automatic lifting system, oil adding system, oil filtering system and automatic temperature control system.
| 1 | Frying product | Snacks, nuggets burger, fish, peanuts and so on |
| 2 | Heating method | Electricity/ Gas/LPG/ Diesel/ Wood |
| 3 | Rated power | Different based on model and products |
| 4 | Frying temperature | 0-180℃ |
| 5 | Frying temperature range | 0-300℃ |
| 6 | Temperature precision | ±1℃ |
| 7 | Frying time | 1-5mintues adjustable |
| 8 | Frying time control range | frequency adjustable |
| 9 | Mesh belt width | 300mm/400mm/600mm/800mm/1000mm/1200mm |

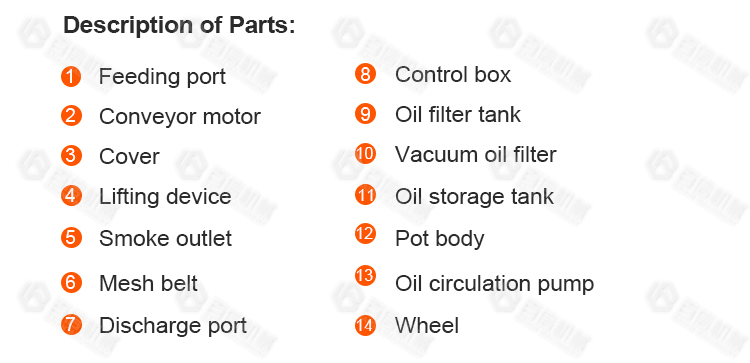

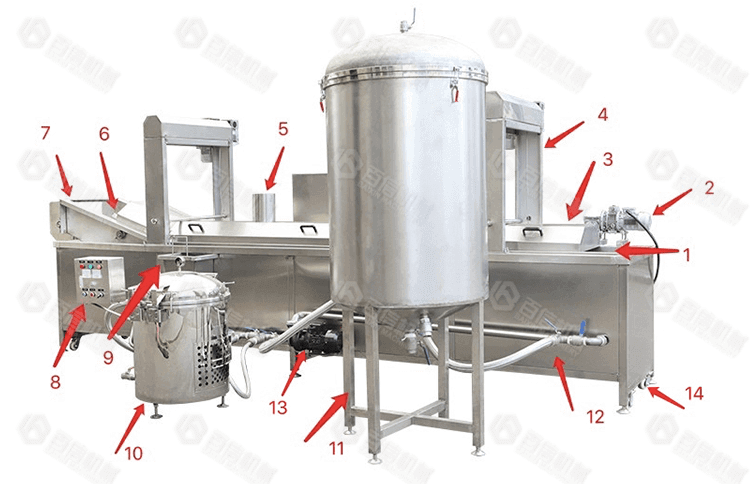

Components of continuous frying machine:
Features of continuous frying machine:
| 1 | Conveyor belt speed is adjustable for different frying time according to different products. | |||
| 2 | Electricity, gas or diesel, and also electromagnetism as power source. Gas or diesel model uses the most advanced and reliable Italy imported Riello brand burner with the advantage of fuel economy, low noise, prevent heating loss, high efficiency. | |||

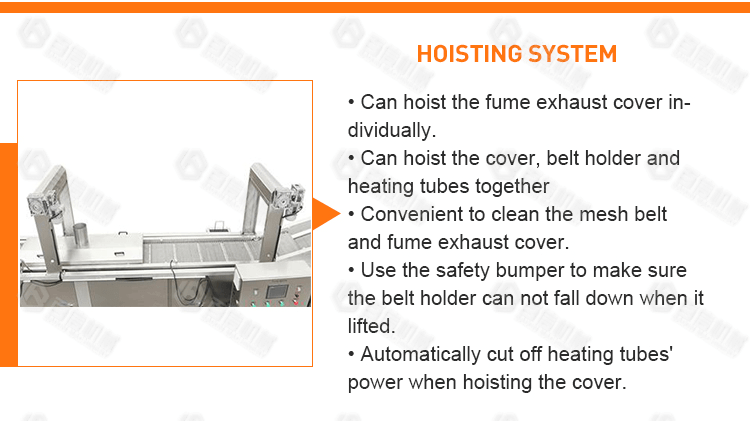

| 3 | Automatic lifting system for easy cleaning the machine and save human power. | |||

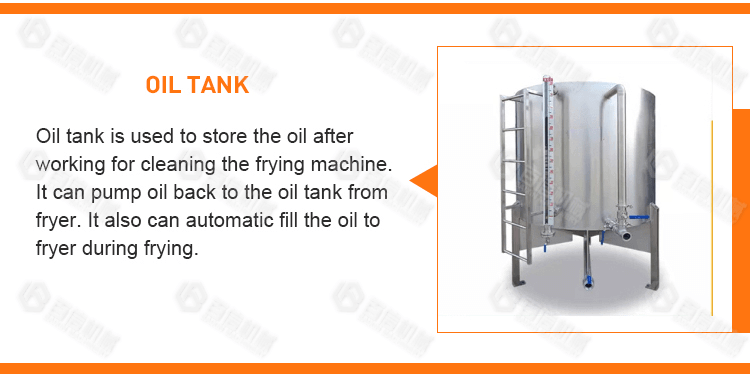

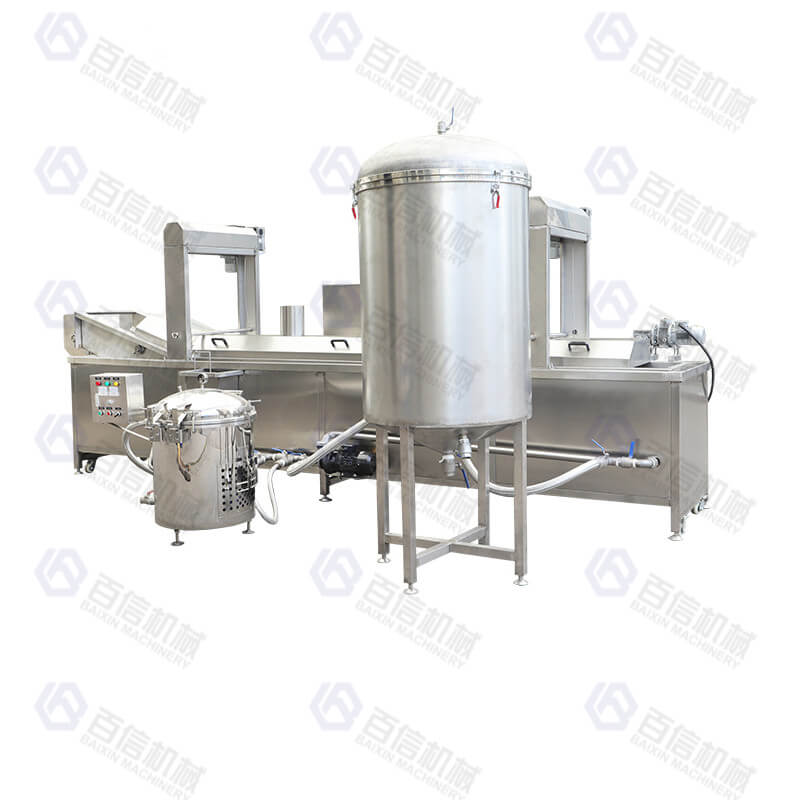

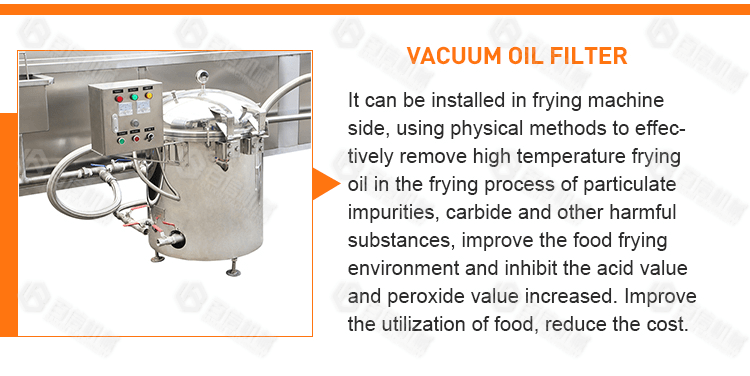

| 4 | Oil circulation system to continuously filter oil residue and extend the service life of cooking. | |||
| 5 | Oil level alarm and automatic oil temperature control (0-300°C). | |||

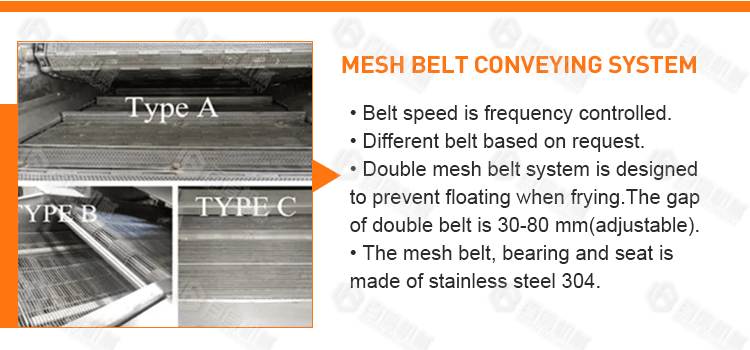

| 6 | Double belt design to prevent floating, ensure complete and perfect frying effect. | |||
| 7 | Scrapers fixed on the belt to make the products come out easily. | |||
| 8 | Fire-extinguishing system can be added according to your demand. | |||

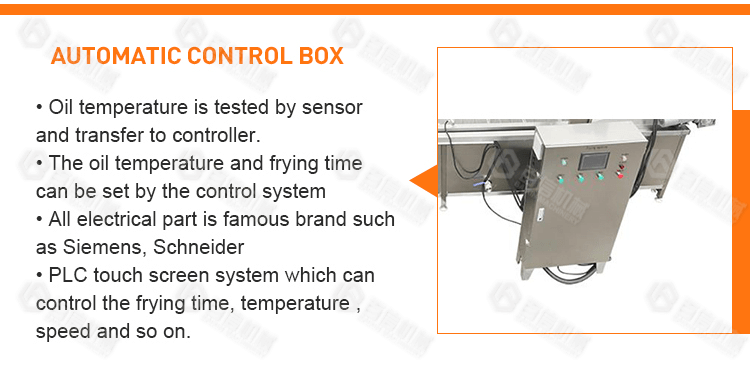

| 9 | PLC touch screen control panel. | |||
| Model | Dimension | Weight | Power | Yield(kg) |
| (electric heating) | ||||
| BX-2500 | 2500*800*1300mm | 500kg | 24kw | 250 |
| BX-3000 | 3000*1200*2200mm | 800kg | 80kw | 300 |
| BX-4000 | 4000*1200*2200mm | 1000kg | 120kw | 400 |
| BX-5000 | 5000*1200*2200mm | 1200kg | 180kw | 500 |
| BX-6000 | 6000*1200*2200mm | 1500kg | 200kw | 600 |
| BX-8000 | 8000*1200*2200mm | 2000kg | 220kw | 800 |

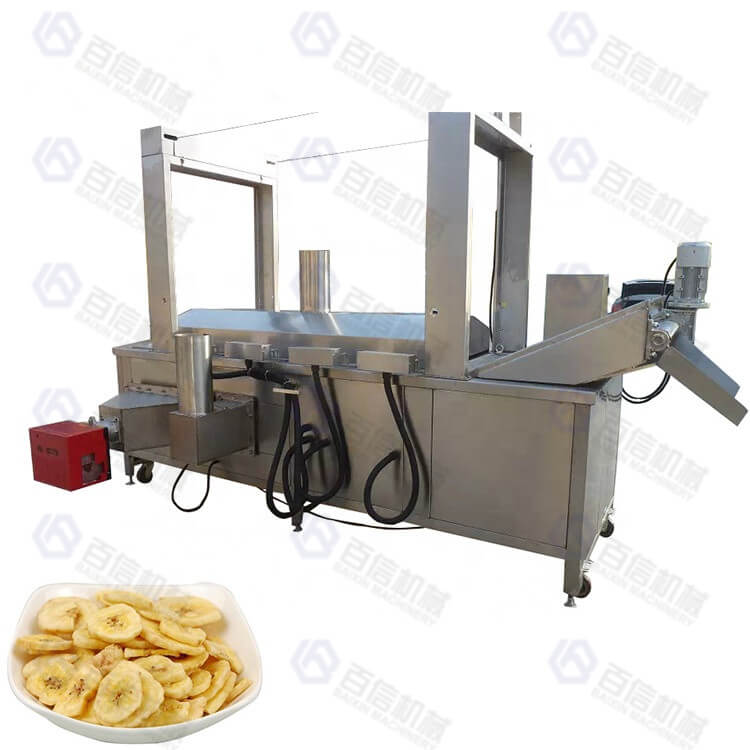

This continuous fryer machine is suitable for various kinds of fried food like meat pie, chicken nuggets, potato chips, banana chips, spring rolls, peanuts and many other snacks.It is widely used in food industry with large capacity.
This continuous frying machine always works together with other machines like deoiling machine to combine one whole production line.
